Case Sealer

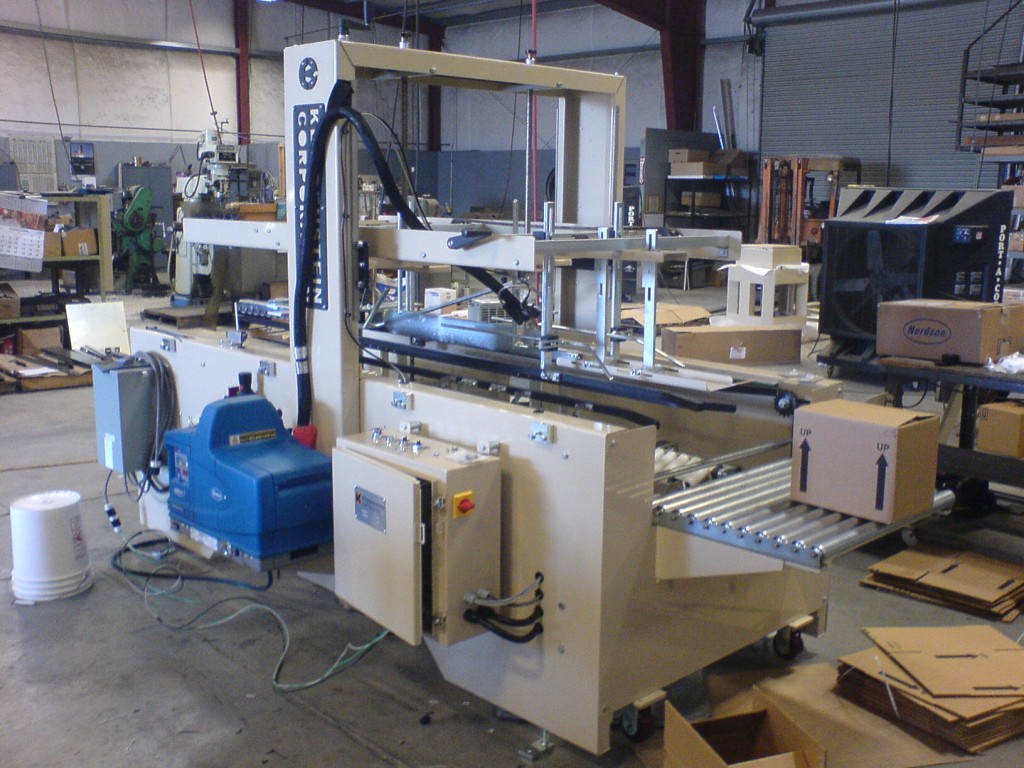

K720 – Semi Auto Top and/or Bottom Case Sealer


Description of Machine…….

Designed and engineered for closing and sealing RSC cases containing pliable or rigid products.  This model is built for semi-auto operation, which requires an operator to tuck in the top minor flaps and to push in the box into the machine.  The machine is equipped with vertical crank screw adjust and horizontal ratchet slider adjust for quick change over.  Also equipped with motorized chain driven flight bar for reliable caseadvance operation.  Up to 15 Case per Minute performance.

Industries who have used this model include…….

Aerosol Cans, Cleaning Supplies and Walnuts

Standard Features

Optional Features

Machine Performance: Up to 15 CPM. 105-1/2″ L x 54″ W

Hot Melt or Tape Head

Machine Safety:  1/2″ Lexan Shields and Fully Guarded Pinch Points

Random Case Height and Width

Power Req: 240VAC / 3 Phase / 60 Hz.

Safety shield interlock switches

Drive Shafts: Stainless Steel, Precision Ground Shafts

480VAC / 3 Phase/ 60Hz

Adjustibility: Crank screw adjust for height and ratchet slider adjust  for width.

Automatic lubrication system

Case Advance: Heavy Duty Flight Bar

Corrosion resistant construction

Automatic Indexing and Rear Minor Flap Folding

Case Sizes outside of Standard Range

Corrosion Protection: Powder coating and zinc plating on all surfaces.

Corrosive resistant construction

Standard Case Range:Minimum: 7″L x 6″W x 6″HMaximum: 18″L x 15″W x 15-1/2″H

Spare Parts Kit
